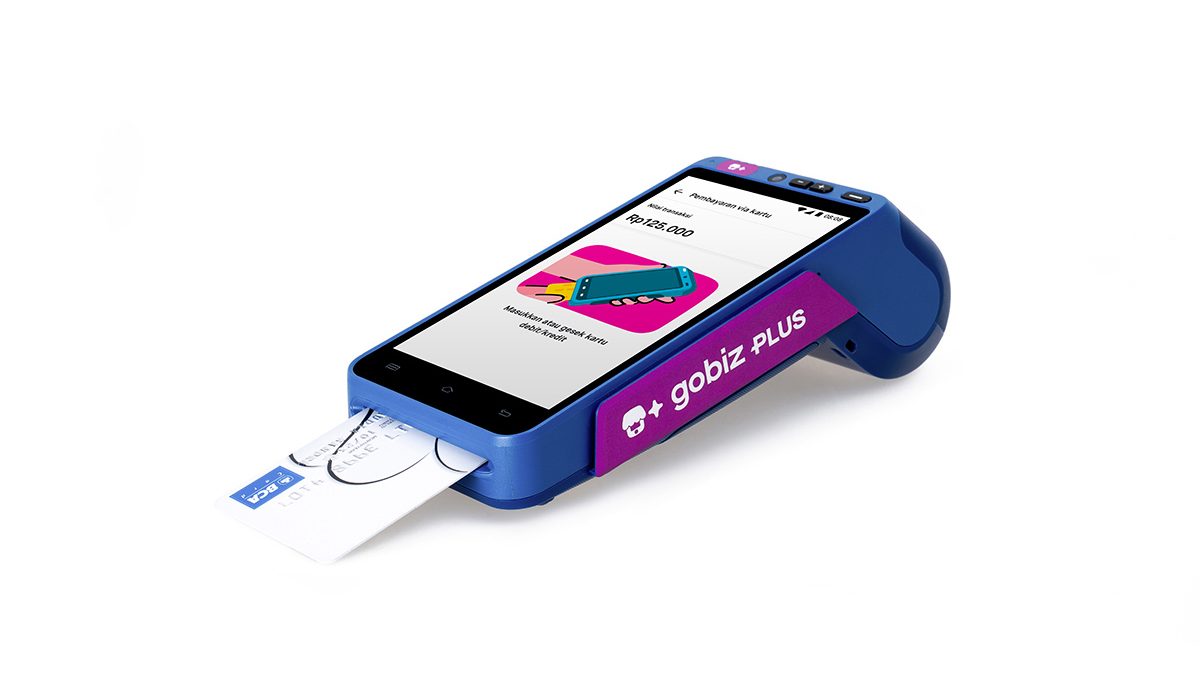

Electronic Data Capture (EDC)
– Smooth operation with the power of Android 12
– Cashless payments acceptance at anywhere and anytime
– Fast and intuitive QR code reading with
– Rear camera
– PCI PTS 6.x
OS : Android 12
Processor : AP: Cortex Quad-core A53, 1.4GHz : SP: Cortex-M3 security core, 192MHz
Memory : 1GB RAM, 8GB FLASH; 2GB RAM, 16GB FLASH; MicroSD card slot up to 128GB
Display : 5-inch TFT full color LCD display, resolution of 1280 x 720 (optional 854 x 480),
Wireless Communication : 4G / 3G / 2G
Wi-Fi 2.4GHz&5GHz (802.11a/b/g/n/ac); Bluetooth 5.0
Wi-Fi 2.4GHz (802.11b/g/n); Bluetooth 4.2
Positioning : GPS/BEIDOU/GLONASS
Magnetic Card Reader : Triple track, bi-directional, conforming to ISO 7810/7811/7813
Smart Card Reader : EMV L1/L2, conforming to ISO 7816, 1.8V/3V/ 5V, synchronous & asynchronous, T=0 & T=1
Contactless Card Reader : EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare, Felica
Camera :
0.3 MP front camera, support 1D/2D code payment
2MP back camera, support 1D/2D code payment
5MP back camera, support 1D/2D code payment
Audio : 1 x Speaker, 1 x Microphone, support audio recording and media play
Keypad : Secure virtual keypad for PIN entry, 1 x power button, 1 x VOL+, 1 x VOL-
Peripheral Ports : 1 x Type C port
Card Slots :
2 x SIM, 1 x SAM
1 x SIM, 2 x SAM
Battery : Li-ion battery, 7.2V/2600mAh/18.7Wh (Equal to 3.6V/5200mAh)
Power Supply :
Input: 100-240V AC 50/60Hz
Output: 5.0V DC, 2.0A
Printer : High-speed thermal printer, 80mm/s Paper roll diameter: 40mm Paper width: 58mm
Certifications:
PCI PTS 6.x, EMV L1/L2, EMV Contactless L1, PayPass, payWave, American ExpressPay,
Discover D-PAS, UnionPay QuickPass, TQM, CE, CB, RoHS, JCB
