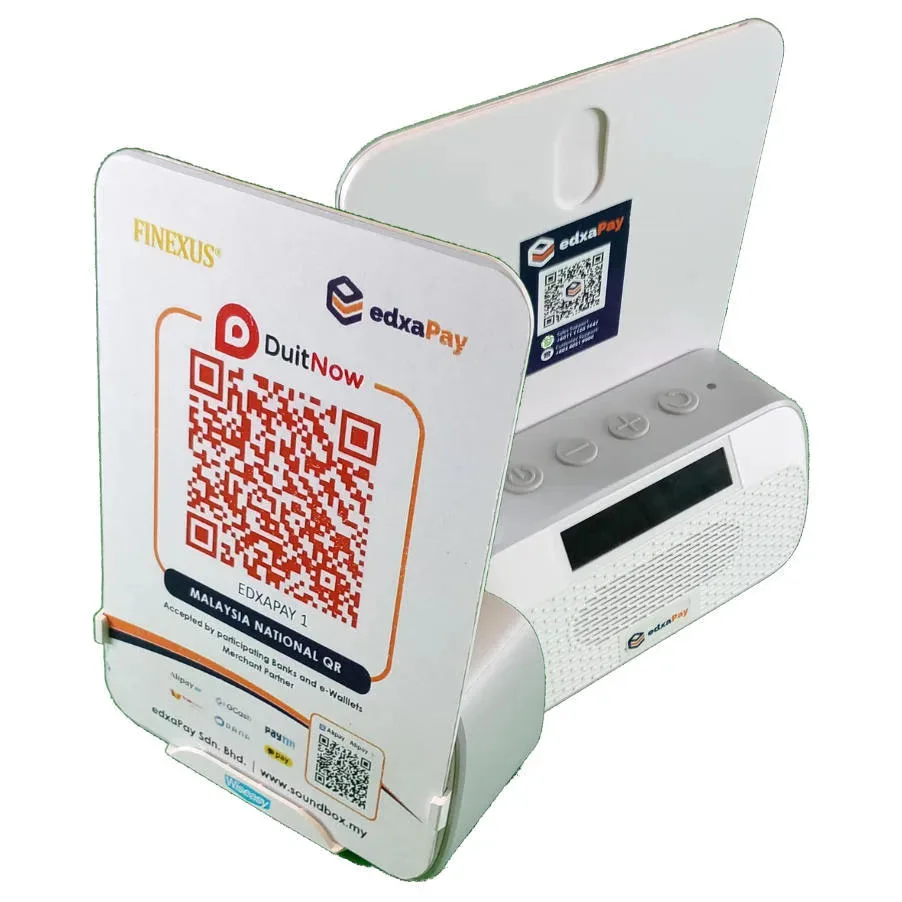

Payment Sound Box
Revolutionary Products,
Redefining Sound Box
Unlock Multiple Payment Choices
Supporting multiple payment methods, allowing customers to pay their way, simplifying the checkout process.
Flexible Configuration Options
Offers a variety of optional modules, enabling customers to select according to their specific business needs.
Processor
ARM Cortex-A5 high performance processor + secure processor
Memory
8MB RAM, 20MB FLASH
Main Screen
2.4-inch color LCD display,
resolution of 320 x 240
Customer Display (Optional)
3.5-inch color LCD display,
resolution of 320 x 480,
support displaying dynamic QR code
Communication
4G
Wi-Fi (802.11 b/g/n) (Optional)
Card Reader
Contactless Card Reader
Smart Card Reader (Optional)
Audio
1 x loudspeaker, clear and bright sound; Support preset voice files
Keypad
10 x numeric keys, 10x function keys, 1 x Power button, support PIN entry
Peripheral Ports
1 x Type C port
Card Slots
1 x SIM
Battery
Li-ion battery, 3.7V 2000mAh/7.4Wh
Power Supply (Optional)
Input: 100~240V AC 50/60Hz
Output: 5.0V DC, 1.0A
Dimensions
134mm(L)*95mm(W)*133.5mm(H)
Certifications
PCI PTS 6.x, EMV L1/L2, EMV Contactless L1, PayPass, payWave, American ExpressPay, Discover D-PAS, UnionPay QuickPass, JCB, TQM, CE, RoHS, BIS, RUPAY
